TrojanUVSwift
Reliable & robust drinking water UV treatment
Peace of Mind
The TrojanUVSwift® exemplifies our dedication to ensuring safe, high-quality drinking water. Purpose-built for reliable and efficient operation, it delivers effective drinking water treatment while helping to address taste and odour (T&O) challenges. Backed by comprehensive microbial validation testing, the system has demonstrated proven UV dose delivery for the inactivation of key pathogens, including Cryptosporidium, Giardia, E. coli, and Adenovirus, providing municipalities with a trusted and dependable treatment solution.
Key Features and Benefits

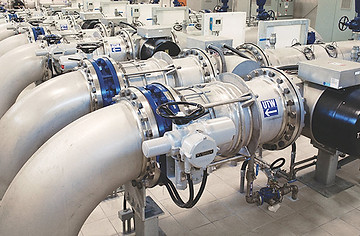

Compact Footprint
Designed for maximum performance in minimal space, the compact and hydraulically efficient system reduces head loss while optimizing UV dose delivery. Its versatile design enables installation in tight pipe galleries, whether vertically or horizontally, and even directly after a 90° elbow, offering greater flexibility for retrofit and new-build projects.

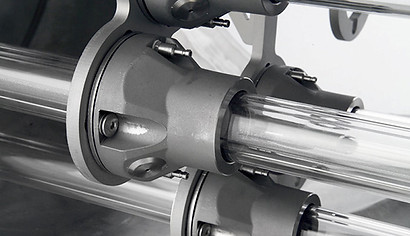

Automatic, Dual-action Lamp Sleeve Cleaning
The optional dual-action ActiClean® sleeve cleaning system combines mechanical wiping with an NSF 60-certified cleaning gel to deliver superior sleeve maintenance. Quartz sleeves and UV intensity sensors are cleaned automatically without interrupting the treatment process, ensuring consistent system performance.

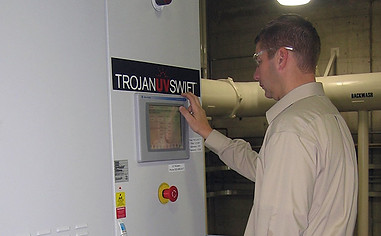

At-a-glance Monitoring
The PLC-based control system manages all UV operations and dose pacing functions, optimizing energy consumption while ensuring the required UV dose is consistently maintained. It seamlessly integrates with plant SCADA systems, enabling centralized monitoring of UV performance, lamp status, power levels, operating hours, and alarm conditions.

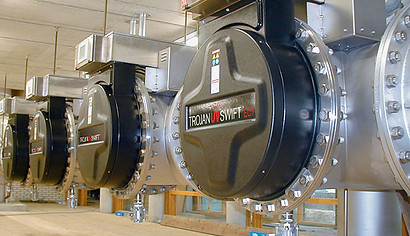

Upgradeable for Taste & Odor Treatment
The chamber design can be configured to accommodate future expansion, providing a cost-effective pathway to increase treatment capacity, enhance system redundancy, or support taste and odour control requirements. For advanced taste and odour management, the TrojanUVSwift® ECT upgrade delivers continuous year-round treatment while also addressing seasonal taste and odour events.

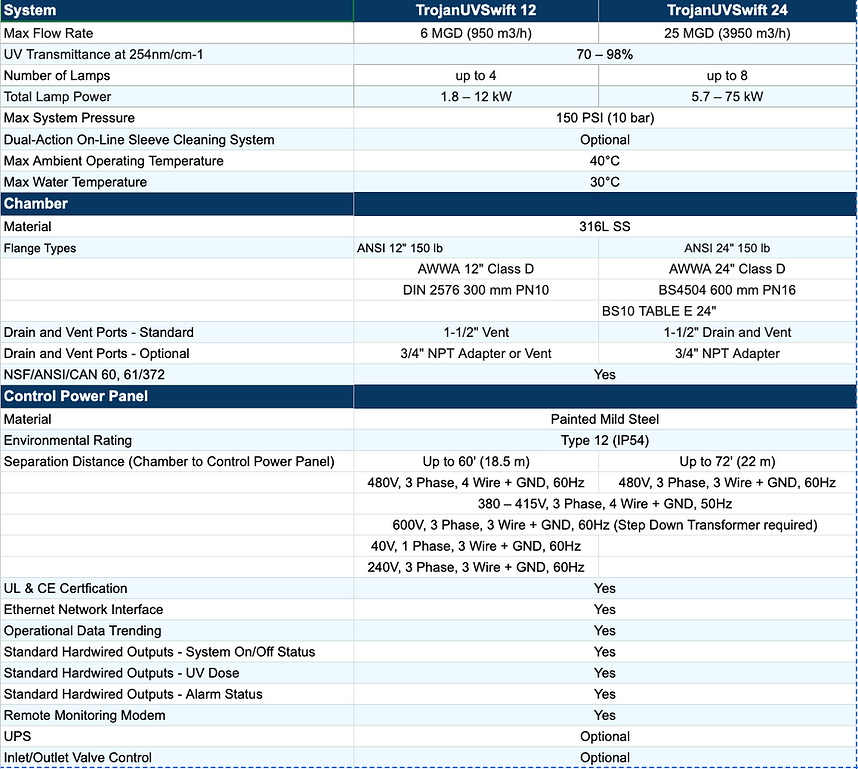

System Specifications
